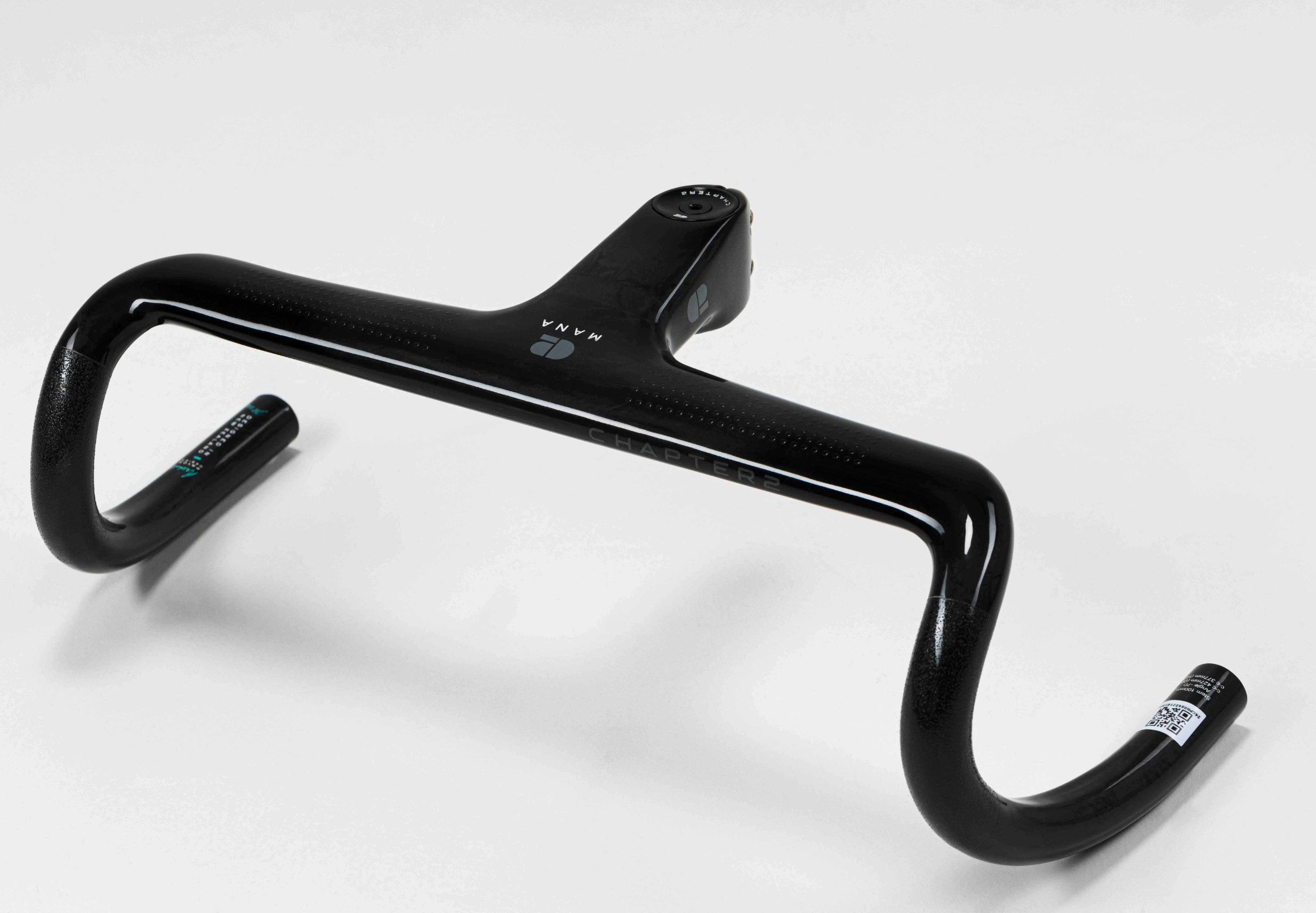

CHAPTER2 MANA5 HANDLEBAR

CHAPTER2 MANA5

Precision Refined. Fit Perfected. Performance Elevated.

Following years of iterative development and rider feedback, CHAPTER2 is proud to introduce the MANA5—the fifth-generation evolution of our iconic integrated cockpit system. Originally launched in 2019, the MANA platform has undergone subtle refinements to maintain its class-leading steering performance, seamless integration, and exceptional ride feel.

With the release of the RIRA, our engineers took the opportunity to completely reimagine the MANA cockpit. The result is the MANA5, a fully integrated bar + stem system now available in 12 sizes to deliver an ideal fit across all CHAPTER2 framesets—and a performance upgrade compatible with most modern road bikes.

⸻

Key Innovations
• Fully Integrated Cabling: Sleek aesthetics and aerodynamic advantage through internally routed hoses and wires
• 25mm Flare: Optimised for aggressive positioning and greater control at speed
• Universal Compatibility: Designed for 1-1/8” steerer tubes, the MANA5 works seamlessly with all CHAPTER2 integrated and non-integrated framesets, and is compatible with most high-end road bikes on the market
• Aerodynamic Sculpting: Refined shape for reduced drag and improved handling dynamics
• 12 Size Combinations: Offers effective stem lengths from 80–130mm and widths tailored to suit a wide range of rider preferences

⸻

TECHNICAL SPECIFICATIONS

Material
• 100% Toray® Uni-Directional Carbon (Made in Japan)

Construction
• One-Piece Integrated Bar + Stem
• Internal Cable and Hose Routing
• 25mm Handlebar Flare (12.5mm per side)

Weight
• 330g (100mm x 427mm) ±3%

Available Sizes
• 12 Configurations
• Effective Stem Lengths: 80mm – 130mm
• Widths: Refer to sizing chart
(Optimised for precise bike fit across all C2 models)

Included
• MANA5 Integrated Cockpit
• Spacers: 3x10mm, 3x5mm, 1x7mm (Curved)
• Cable routing hardware

Compatibility
• Steerer Tube: 1-1/8” (Circular)
• Frame Compatibility: All CHAPTER2 Integrated and Non-Integrated Framesets + Most Premium Road Frames
• Electronic Shifting Compatible: Shimano® Di2, SRAM® eTAP, Campagnolo® EPS
• GPS Mounting: Compatible with most out-front and integrated solutions

Safety Certification
• EN ISO 4210:2014

⸻

GPS / COMPUTER MOUNT OPTIONS

Mount not included. Recommended third-party solutions:
• K-Edge® – Integrated and aero out-front mounts
• Barfly® – Garmin/Wahoo compatible setups
• Alpitude® – Ultra-lightweight carbon mounting systems
